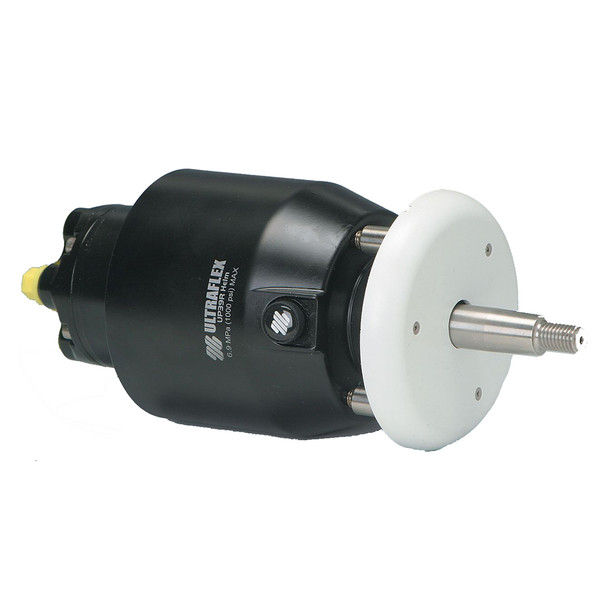

Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R]
Uflex USA
(No reviews yet)
Write a Review
![Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/608x608/products/29310/29485/75560XL__36114.1581013111.jpg?c=2 "Uflex UP28R Rear Mount Helm 1.7 cu. 3/4\" Tapered Stainless Steel Shaft [UP28R]")
- Uflex USA:
- Authorized Reseller
- Product Condition:
- New
- Warranty:
- Full Manufacturer Warranty
- SKU:
- UP28R-UFL
- MPN:
- UP28R
- UPC:
- 702755024811
![Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/1280x1280/products/29310/29485/75560XL__36114.1581013111.jpg?c=2?imbypass=on "Uflex UP28R Rear Mount Helm 1.7 cu. 3/4\" Tapered Stainless Steel Shaft [UP28R]")
Delivery:
Estimated delivery
if you place order before 3pm EST
Usually ships the same business day.
Returns:
30 day returns. | See Details
Frequently bought together:
UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft
Features:
- Available in four different displacement sizes
- Compact design
- Ball bearing piston race
- Built-in lock valve for positive rudder lock
- Integral relief valve for over-pressure protection
- 3/4” tapered stainless steel shaft
- Easily accessible lock valve and shaft seal for replacement
- Cast iron cylinder rotor for greater durability and longer life
- 1/4" NPT fitting for 3/8" tube
- Includes 90° adjustable fittings for 3/8” tube and white bezel
- UP45R pump is ideal for double cylinder outboard applications
- UP45 pump is available also for inboard application
- X68 (optional) - 40894Z Chrome bezel
- KITF (optional) - 39664Y Remote fill adapter
Specifications:
- Mounting: Retro-cruscotto
- Displacement/Revolution: 28 cc-1.7 cu in
- # of Pistons: 5
- Relief Valve Setting: 70 Bar - 1000 PSI
- Maximum Wheel Diameter: 710mm - 28"
- Weight: 5kg - 11 lbs.
- MPN:UP28R
