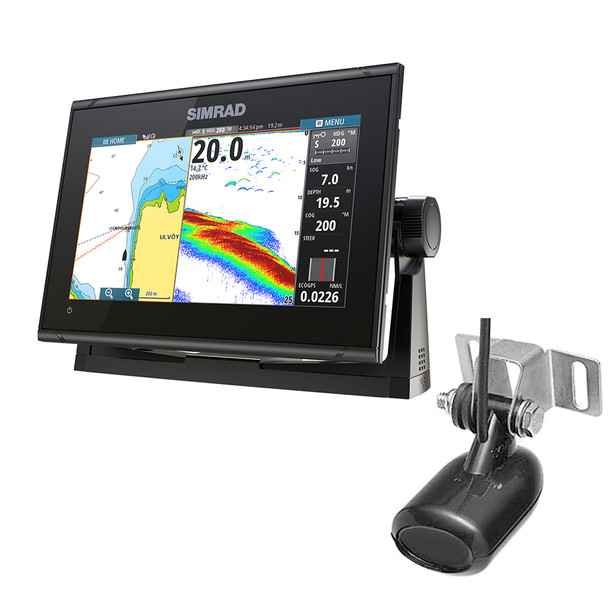

Simrad GO9 XSE Combo w/Transom Mount Transducer 83/200 kHz [000-16293-001]
Simrad
(No reviews yet)
Write a Review
![Simrad GO9 XSE Combo w\/Transom Mount Transducer 83\/200 kHz [000-16293-001]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/608x608/products/55901/74280/102850XL__38583.1709910635.jpg?c=2 "Simrad GO9 XSE Combo w\/Transom Mount Transducer 83\/200 kHz [000-16293-001]")
- Product Condition:
- New
- MPN:
- 000-16293-001
- SKU:
- 000-16293-001-SIM
- MPN:
- 000-16293-001
- UPC:
- 9420064135684
![Simrad GO9 XSE Combo w\/Transom Mount Transducer 83\/200 kHz [000-16293-001]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/1280x1280/products/55901/74280/102850XL__38583.1709910635.jpg?c=2?imbypass=on "Simrad GO9 XSE Combo w\/Transom Mount Transducer 83\/200 kHz [000-16293-001]")
Frequently bought together:
Simrad GO9 XSE 9-inch Chartplotter/Fishfinder Combo with 83/200 kHz Transom-Mount Transducer
This package combines the Simrad GO9 XSE multifunction display with the Navico 000-14884-001 high-speed skimmer transducer. It is designed for boaters who want chartplotting, traditional sonar and room to expand their onboard electronics.
Key Features
- Bright 9-inch multi-touch display
- Built-in 10 Hz GPS receiver
- Traditional 83/200 kHz depth and temperature sonar with the included transducer
- Built-in CHIRP, DownScan, SideScan and ForwardScan capability when paired with compatible transducers
- NMEA 2000 networking for compatible engine, audio, autopilot and vessel data
- Ethernet radar connection for compatible Simrad radar systems
- Wi-Fi for supported software updates and mobile-device screen mirroring
- Dual microSD card slots
- Compatible with supported C-MAP and Navionics chart options
Included in This Package
- Simrad GO9 XSE display
- Navico 000-14884-001 83/200 kHz transom-mount skimmer transducer with temperature
- C-MAP Discover chart content as supplied for this model
- Gimbal bracket
- Dash-mount kit and bezel
- Power cable
- Sun cover
Important Specifications
- Display size: 9 inches
- Resolution: 800 × 480 pixels
- Brightness: 1,200 nits
- Operating voltage: 10–17 V DC
- Typical current draw: 1 A at 13.6 V with sonar off and maximum backlight
- Water protection: IPX6/IPX7
- NMEA 2000: one Micro-C port
- Sonar: one 9-pin port
- Radar: one 5-pin Ethernet port
- Card reader: dual microSD
- Display weight: approximately 2.9 lb, excluding mounting hardware
- UPC: 9420064135684
Compatibility and Installation Notes
The included 9-pin transducer provides traditional 83/200 kHz sonar and water temperature. StructureScan, ForwardScan and other advanced sonar views require the appropriate compatible transducer and may require additional accessories. Radar, autopilot, engine and audio integration require compatible equipment and a correctly designed network.
Confirm available helm space, power supply, circuit protection, transducer mounting location, network architecture and chart coverage before installation. For safety-critical navigation or complex integration, follow current Simrad installation instructions and use a qualified marine electronics installer.
Manufacturer part number: 000-16293-001
