Raymarine Axiom 2 Pro 9 S 9" HybridTouch Chartplotter/Fishfinder — No Chart or Transducer [E70653]

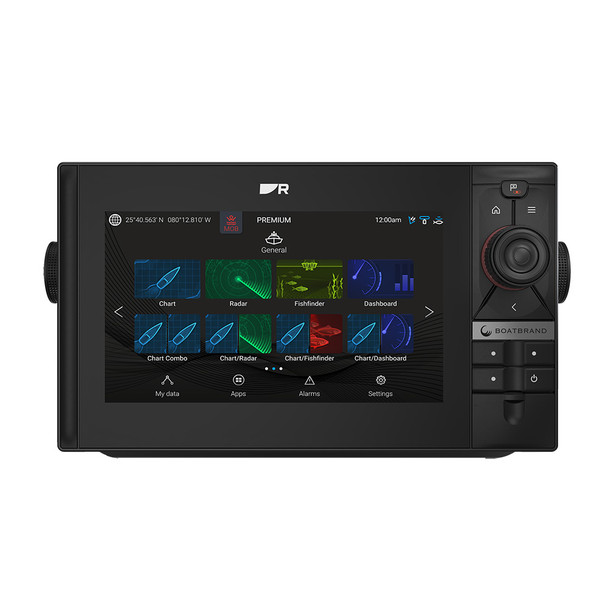

Raymarine Axiom 2 Pro 9 S 9" HybridTouch Chartplotter/Fishfinder

MPN: E70653
UPC: 723193843512
Configuration: 9-inch Axiom 2 Pro S — No Chart Included — No Transducer Included

The Raymarine Axiom 2 Pro 9 S is a high-performance 9-inch multifunction chartplotter built for cruising, sailing and integrated marine systems. It combines Raymarine's HybridTouch™ touchscreen-and-keypad control, a powerful 6-core processor, integrated High CHIRP sonar, built-in GNSS, marine networking, video and audio connectivity in one rugged helm display.

Important: This exact SKU E70653 does not include a chart card or transducer. Select compatible charting and sonar hardware separately for your installation.

Key Features

• 9-inch sunlight-readable IPS display
• 1280 x 720 HD resolution
• 1300-nit screen brightness
• HybridTouch™ touchscreen and physical keypad control
• Powerful 6-core processor
• HydroTough™ water-repellent display coating
• Integrated single-channel High CHIRP sonar
• Built-in 10 Hz GNSS receiver
• GPS, Galileo, GLONASS and BeiDou support
• 2 x RayNet Ethernet ports
• NMEA 2000 connectivity
• 2.4 GHz and 5 GHz Wi-Fi
• Bluetooth 4.0
• 64GB internal solid-state storage
• 2 x front-mounted microSDXC card slots
• HDMI video/audio output
• Analog video input
• Analog audio output
• IPX6 and IPX7 environmental protection

Built-In Sonar

Axiom 2 Pro S includes integrated single-channel CHIRP conical sonar for depth sounding and underwater detection.

Raymarine specifies a sonar depth range from approximately 2 ft to 900 ft (0.6 m to 274 m), depending on water conditions and the compatible transducer used.

The display uses a 25-pin RealVision-type transducer connection. Raymarine specifies that CPT-S style transducers require the A80490 adapter cable.

Navigation & GNSS

This exact SKU is the No Chart version of the Axiom 2 Pro 9 S. Compatible charting must be selected separately.

The integrated GNSS receiver supports GPS, Galileo, GLONASS and BeiDou and updates position at 10 Hz. Supported satellite-based augmentation systems include WAAS, EGNOS, MSAS, GAGAN and QZSS.

Networking & System Integration

• 2 x RayNet Ethernet ports at 10/100/1000 Mbit/s
• 1 x NMEA 2000 DeviceNet connection
• 2.4 GHz and 5 GHz Wi-Fi
• Bluetooth 4.0
• USB Micro-B accessory connection
• HDMI Micro Type-D digital video/audio output
• BNC analog video input through the power cable
• RCA analog audio connections through the power cable
• TNC connector for optional external GNSS antenna

Axiom 2 Pro can be expanded with compatible Raymarine radar, autopilot, sonar, thermal imaging, cameras, AIS, instruments and other supported marine-network equipment.

Specifications

What's in the Box

• Axiom 2 Pro 9 S display unit
• User-configurable keypad
• Suncover
• Gasket
• 2 x trunnion knobs
• Trunnion bracket
• Grounding connection hardware
• DeviceNet to SeaTalkng adapter cable — 1 m (3.28 ft)
• RayNet female-to-female network cable — 2 m (6.56 ft)
• 4 x mounting fixings
• Documentation
• Power/video/audio cable — 1.5 m (4.92 ft)

Before You Buy

This exact E70653 package includes no chart and no transducer. Select compatible charting, transducer and any required adapter cables based on your intended navigation and sonar functions.

For CPT-S style transducers, Raymarine specifies adapter cable A80490.

Warranty

Raymarine provides a 2-Year Standard Manufacturer Warranty for eligible products. Raymarine currently allows eligible new products to be extended to a 3-year warranty at no additional charge when registered within 90 days of purchase, subject to the manufacturer's current terms and eligibility requirements.
