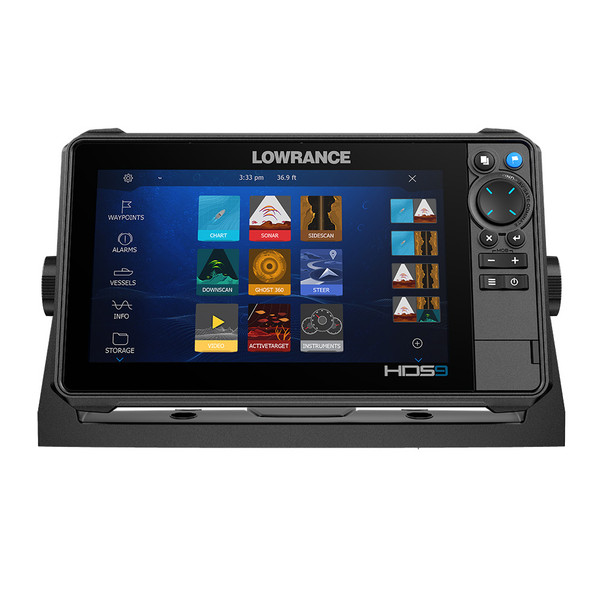

Lowrance HDS PRO 9 Chartplotter/Fishfinder with C-MAP DISCOVER OnBoard — No Transducer [000-15996-001]

Lowrance HDS PRO 9 Chartplotter/Fishfinder with C-MAP DISCOVER OnBoard

MPN: 000-15996-001
UPC: 9420064129768
Configuration: No Transducer Included

The Lowrance HDS PRO 9 combines a 9-inch SolarMAX™ HD touchscreen, advanced sonar capability, preloaded C-MAP® DISCOVER OnBoard charts, integrated GPS and extensive marine networking in one high-performance fishfinder/chartplotter.

Important: This exact package does not include a transducer. Choose a compatible transducer or sonar system separately based on the sonar functions you want to use.

Key Features

• 9-inch SolarMAX™ HD IPS touchscreen
• 1280 x 720 display resolution
• More than 1,200 nits screen brightness
• Preloaded C-MAP® DISCOVER OnBoard cartography
• Integrated 10 Hz GPS/GLONASS with WAAS/EGNOS/MSAS support
• Integrated Lowrance CHIRP and Broadband sonar support
• Active Imaging™ and Active Imaging™ HD SideScan/DownScan support with compatible transducer
• ActiveTarget® and ActiveTarget® 2 Live Sonar compatible
• FishReveal™ support
• SideScan FishReveal requires an S3100 module and compatible transducer
• Two 100 Mbit Ethernet ports
• NMEA 2000® connectivity
• NMEA 0183 support through the power connector
• Integrated Wi-Fi and Bluetooth® 4.0
• Dual microSD card slots supporting cards up to 32GB
• Compatible radar and autopilot integration
• Ghost® Trolling Motor and compatible Power-Pole® control
• IPX7 waterproof rating with card door closed

Sonar & Fishing System Expansion

HDS PRO 9 is designed as the control center for an expandable Lowrance fishing system. Integrated sonar support includes CHIRP, Broadband Sonar, Active Imaging DownScan, Active Imaging SideScan, Active Imaging HD DownScan and Active Imaging HD SideScan when paired with compatible hardware.

The display is also compatible with supported Lowrance sonar systems including ActiveTarget®, ActiveTarget® 2, S3100, SonarHub®, StructureScan®, StructureScan HD and StructureScan 3D.

No transducer is included with MPN 000-15996-001. Available sonar functions, frequencies, depth capability and imaging views depend on the connected transducer and/or sonar module.

Navigation & Cartography

This Americas configuration includes C-MAP® DISCOVER OnBoard cartography.

HDS PRO also supports compatible chart products including C-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis, supported Navionics® products and other supported regional mapping options.

C-MAP Genesis Live provides real-time personal mapping capability.

Networking & Boat Integration

• 2 x 100 Mbit Ethernet ports
• 1 x NMEA 2000® Micro-C connection
• NMEA 0183 via power connector
• Internal 802.11b/g/n Wi-Fi
• Bluetooth® 4.0
• Compatible Lowrance radar integration
• Compatible autopilot integration
• Ghost® Trolling Motor integration
• Compatible Power-Pole® control
• Compatible NMEA 2000 marine-audio integration

Specifications

Before You Buy

This is the no-transducer HDS PRO 9 configuration. Before ordering a transducer, sonar module, radar, autopilot or other system accessory, verify compatibility with the exact equipment already installed on your boat and with the functions you want to use.

Warranty

Lowrance lists a 2-year manufacturer warranty for HDS PRO, plus three additional years of upgrade options under its current program, totaling five years of program coverage subject to Lowrance's current terms and eligibility requirements.
