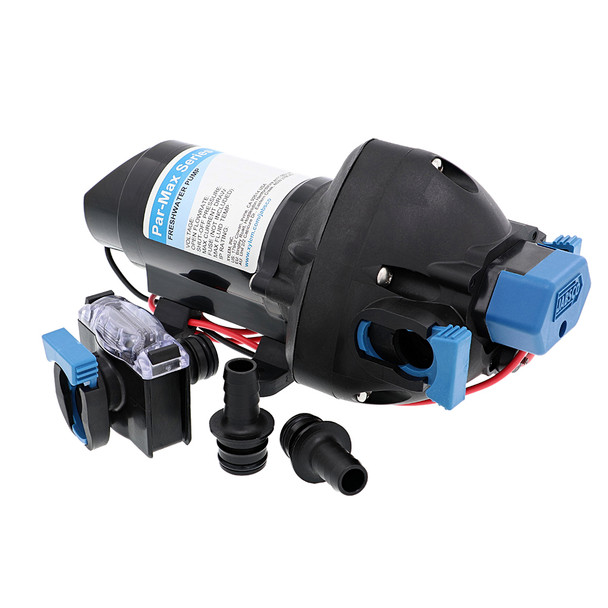

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI [31395-2524-3A]

(No reviews yet) Write a Review
Jabsco:
Authorized Reseller
Product Condition:
New
Warranty:
Full Manufacturer Warranty
SKU:
31395-2524-3A-JAB
MPN:
31395-2524-3A
UPC:
671880841795
  • Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI [31395-2524-3A]
  • Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI [31395-2524-3A]
  • Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI [31395-2524-3A]
  • Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI [31395-2524-3A]
  • Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI [31395-2524-3A]
MSRP: $194.99
$139.99
— You save $55.00


Delivery:

Estimated delivery if you place order before 3pm EST
Usually ships the same business day.

Returns:

30 day returns.   |   See Details

Frequently bought together:

Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

  • Co-molded diaphragm technology for long life and durability
  • HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing material: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
  • Dry self-priming capability: 7ft min (2.13m/min)
  • Certifications: CE, ISO8846, RCM
  • Ingress Protection: IPX6

WarningWARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

  • Volts: 24v
  • Max PSI: 25
  • Gallons Per Minute: 3 GPM
  • Box Dimensions: 5"H x 6"W x 15"L WT: 4.45 lbs
  • UPC: 671880841795

Brochure (pdf)
SKU:
31395-2524-3A-JAB
UPC:
671880841795
Condition:
New
Product Features
  • MPN:31395-2524-3A
