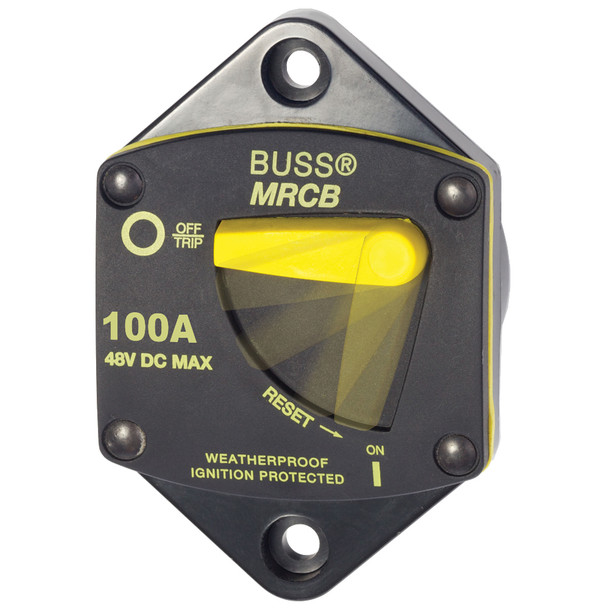

Blue Sea 7044 187 - Series Thermal Circuit Breaker - 100Amp [7044]

(No reviews yet) Write a Review
Blue Sea Systems:
Authorized Reseller
Product Condition:
New
Warranty:
Full Manufacturer Warranty
SKU:
7044-BLU
MPN:
7044
UPC:
632085170448
MSRP: $103.68
$70.99
— You save $32.69


Delivery:

Estimated delivery if you place order before 3pm EST
Usually ships the same business day.

Returns:

30 day returns.   |   See Details

Frequently bought together:

187 - Series Thermal Circuit Breakers - Panel Mount

100 Amp Circuit Breaker

PN:  7044

Features:

  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Self-trimming case eliminates the need for mounting panels or trim bezels
  • Round case permits easy installation with standard sized hole saw
  • Large clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class:Type III - Switchable / Manual Reset - Trip Free
Type:Thermally Responsive Bi-Metal Blade
Case Material:Thermoset Polyester
Voltage Rating:48 Volts DC Maximum
Interrupt Rating:5,000 Amperes @12 Volts DC
3,000 Amperes @24 Volts DC
1,500 Amperes @42 Volts DC
Operating Temperature Range:-25C° to +82C°

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 100a
  • Box Dimensions: 4"H x 5"W x 7"L WT: 0.5 lbs
  • UPC: 632085170448
SKU:
7044-BLU
UPC:
632085170448
Condition:
New
Product Features
  • MPN:7044
