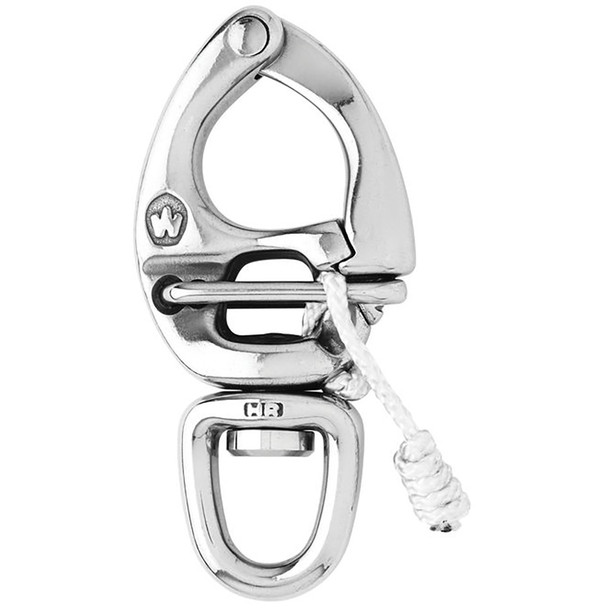

Wichard HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64" [02675]

(No reviews yet) Write a Review
Wichard Marine:
Authorized Reseller
Product Condition:
New
Warranty:
Full Manufacturer Warranty
SKU:
02675-WIC
MPN:
02675
  • Wichard HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35\/64" [02675]
  • Wichard HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35\/64" [02675]
MSRP: $198.20
$120.99
— You save $77.21


Delivery:

Estimated delivery if you place order before 3pm EST
Usually ships the same business day.

Returns:

30 day returns.   |   See Details

Frequently bought together:

HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 7050 / (kg) 3200

Dimensions:

  • A: (inch) 25/32" / (mm) 20
  • B: (inch) 17/32" / (mm) 13.5
  • Length: (inch) 3 35/64" / (mm) 90

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
