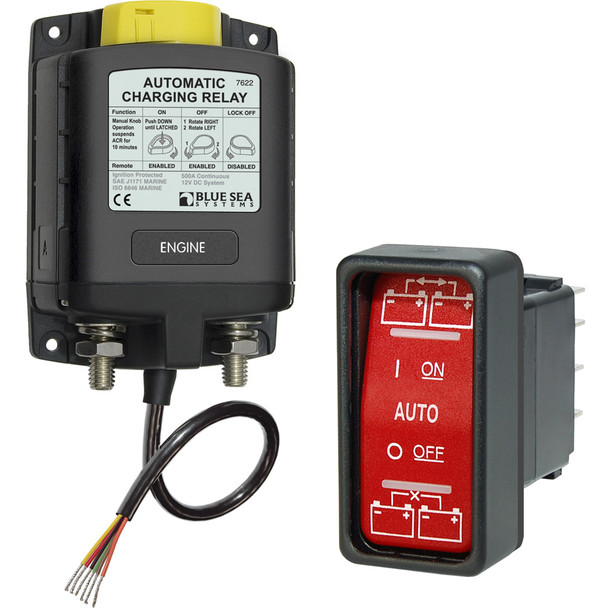

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay [7622]
Blue Sea Systems
- Blue Sea Systems:
- Authorized Reseller
- Product Condition:
- New
- Warranty:
- Full Manufacturer Warranty
- SKU:
- 7622-BLU
- MPN:
- 7622
- UPC:
- 632085076221
Delivery:
Estimated delivery
if you place order before 3pm EST
Usually ships the same business day.
Returns:
30 day returns. | See Details
Frequently bought together:
7622
Manual Control: Yes
Coil Voltage: 12v
Features:
- Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
- Includes ML-Series Remote Control Contura Switch PN 2146
- 500 Ampere continuous rating
- Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
- Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
- Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
- Senses charging on two battery banks
- Supports high-output alternators up to 500 Amps
- LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit protection
- Silver alloy contacts provide high reliability for switching live loads
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Owner's Manual (pdf)
- MPN:7622
