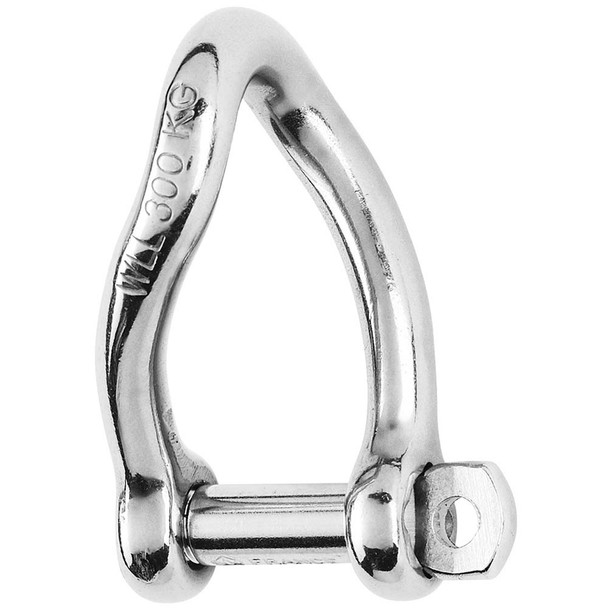

Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3/16" [01222]
Wichard Marine
(No reviews yet)
Write a Review
![Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16" [01222]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/608x608/products/46992/60509/93099XL__46365.1643418617.jpg?c=2 "Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16\" [01222]")
- Wichard Marine:
- Authorized Reseller
- Product Condition:
- New
- Warranty:
- Full Manufacturer Warranty
- SKU:
- 01222-WIC
- MPN:
- 01222
- UPC:
- 3587790012224
![Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16" [01222]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/1280x1280/products/46992/60509/93099XL__46365.1643418617.jpg?c=2?imbypass=on "Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16\" [01222]")
![Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16" [01222]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/1280x1280/products/46992/60510/93099BXL__27917.1643418618.jpg?c=2?imbypass=on "Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16\" [01222]")
![Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16" [01222]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/100x100/products/46992/60509/93099XL__46365.1643418617.jpg?c=2 "Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16\" [01222]")
![Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16" [01222]](https://cdn11.bigcommerce.com/s-f4qoadv2cw/images/stencil/100x100/products/46992/60510/93099BXL__27917.1643418618.jpg?c=2 "Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3\/16\" [01222]")
Delivery:
Estimated delivery
if you place order before 3pm EST
Usually ships the same business day.
Returns:
30 day returns. | See Details
Frequently bought together:
Self-Locking Twisted Shackle - Diameter 5mm - 3/16"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1050
- Breaking load (lb) 2420
- Weight (lb) 0.035
Dimensions (see 2nd image):
- A (inch) 1-1/32"
- B (inch) 25/64"
- C (inch) 13/64"
- D (inch) 25/64"
- D diameter (inch) 13/64"
- E (inch) 5/32"
- F (inch) 1-1/2"
- H (inch) 1-1/32"
- MPN:01222
